#CI/CD Integration using Personal token

Integrate Zephyr Cloud into your continuous integration and deployment pipelines to automate your deployment workflow. This guide covers setup for GitHub Actions and GitLab CI/CD.

#Overview

• Generate API Token
• GitHub Actions Setup
• GitLab CI/CD Setup
• Troubleshooting

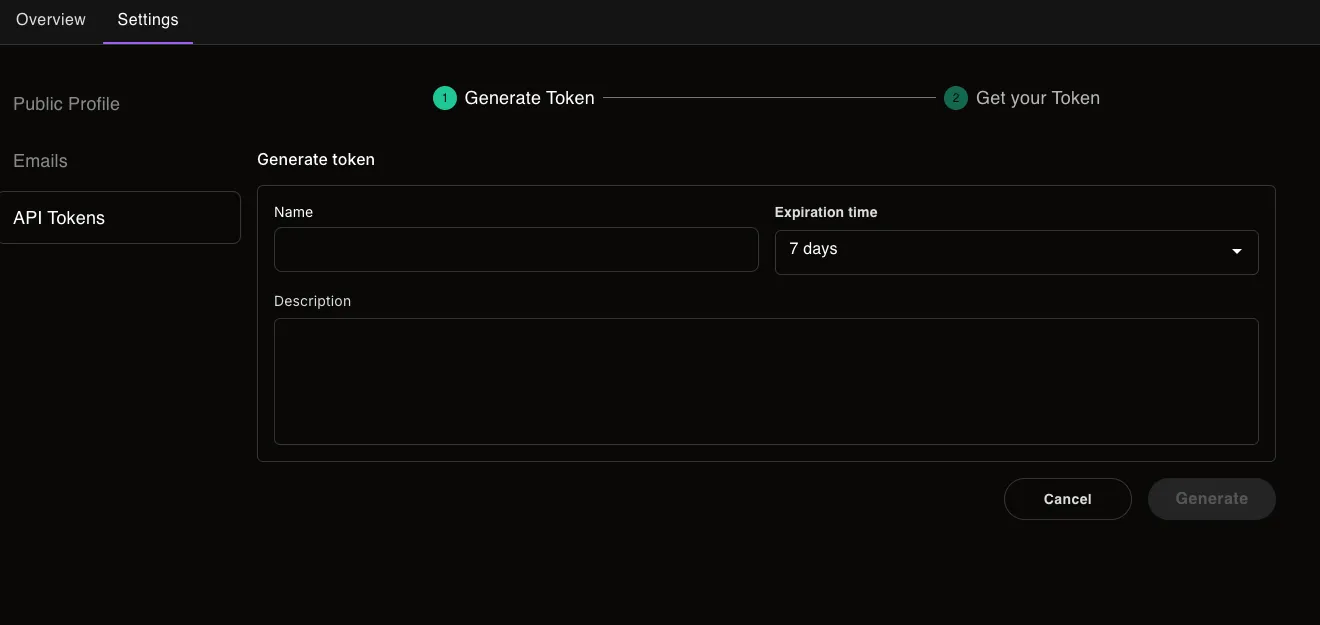

#Generate an API Token

To use Zephyr Cloud in CI/CD pipelines, you'll need an API token for authentication:

#GitHub Actions

Zephyr requires an authenticated user to publish updates. Configure your GitHub Actions pipeline to build and deploy with Zephyr by adding a token to your repository secrets.

#Adding the GitHub Secret

1. Create a token on your API token page
2. Add it as a repository secret in GitHub
3. The secret must be assigned to the ZE_SECRET_TOKEN environment variable

env:
  ZE_SECRET_TOKEN: ${{ secrets.ZEPHYR_AUTH_TOKEN }}

#Authentication Behavior

When the Zephyr plugin detects the ZE_SECRET_TOKEN environment variable, it will automatically authenticate with the Zephyr API, bypassing the usual login step.

You'll see this confirmation in the console:

 ZEPHYR   Token found in environment. Using secret token for authentication

#GitLab CI/CD

Configure your GitLab Runner pipeline to build and deploy with Zephyr by adding a token to the CI/CD variables.

#Adding the GitLab CI/CD Variable

1. Create a full access token on your API token page
2. Add it as a CI/CD variable in your GitLab project:

Steps to add the token:

1. Navigate to your GitLab project
2. Go to Settings → CI/CD
3. Expand the Variables section
4. Click Add variable
5. Configure the variable:
   • Key: ZE_SECRET_TOKEN
   • Value: Your Zephyr API token
   • Type: Variable
   • Environment scope: All (or specify specific environments)
   • Protect variable: ✅ Check if you want to use it only in protected branches
   • Mask variable: ✅ Check to hide the value in job logs

#Using the Token in GitLab CI/CD

In your .gitlab-ci.yml file, the token will be automatically available as an environment variable:

build:
  stage: build
  script:
    - npm install
    - npm run build
  variables:
    ZE_SECRET_TOKEN: $ZE_SECRET_TOKEN

For more explicit control, you can also reference it directly:

deploy:
  stage: deploy
  script:
    - npm install
    - npm run build
  environment:
    name: production
  variables:
    ZE_SECRET_TOKEN: $ZE_SECRET_TOKEN

#Authentication Behavior

When the Zephyr plugin detects the ZE_SECRET_TOKEN environment variable, it will automatically authenticate with the Zephyr API, bypassing the usual login step.

You'll see this confirmation in the console:

 ZEPHYR   Token found in environment. Using secret token for authentication

#Complete Pipeline Example

Here's a full GitLab CI/CD pipeline configured for Zephyr deployment:

stages:
  - install
  - build
  - deploy

variables:
  npm_config_cache: '$CI_PROJECT_DIR/.npm'

cache:
  key: ${CI_COMMIT_REF_SLUG}
  paths:
    - .npm/
    - node_modules/

install:
  stage: install
  script:
    - npm ci --cache .npm --prefer-offline
  artifacts:
    paths:
      - node_modules/
    expire_in: 1 hour

build:
  stage: build
  script:
    - npm run build
  artifacts:
    paths:
      - dist/
    expire_in: 1 day
  variables:
    ZE_SECRET_TOKEN: $ZE_SECRET_TOKEN

deploy:
  stage: deploy
  script:
    - npm run deploy
  only:
    - main
  environment:
    name: production
  variables:
    ZE_SECRET_TOKEN: $ZE_SECRET_TOKEN

#Troubleshooting

#Authentication Issues

Token not found error:

• Verify the variable name is exactly ZE_SECRET_TOKEN
• Ensure the variable is available in the environment where your job runs
• Check that the token hasn't expired

#GitLab-Specific Issues

Protected variables:

• If using protected variables, ensure your pipeline runs on a protected branch or tag

Masked variables:

• Masked variables won't appear in job logs (recommended for security)
• Temporarily unmask if you need to troubleshoot, then re-mask for production

Variable scope:

• Check that the variable scope matches your pipeline's environment requirements
